Wuxi Friendship Paper Bag Making Machinery Co.,Ltd

Products

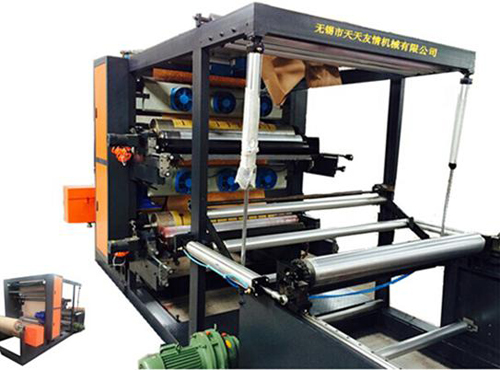

Two Color Flexo Printing Machine
產(chǎn)品參數(shù)

This equipment made by casting material, the base material is made by flexible version of photosensitive resin, rubber as base material, through the anilox roller transfer ink, ink printing on substrates by liquid press.

The whole machine adopts wired control, the main unit is formed by unwinding unit, tension control unit, traction feeding unit, printing unit, drying unit . The unwinding unit is controlled by automatic correction system device, it is a tiny deviation in feeding, automatically correct paper device, the whole machine is controlled by PLC centralized control system.

This machine structure is reasonable,  high printing speed and simple operation. Using scope: chemical bag, cement bag, food packaging bags, handbags and other industries.

Main Parameters:

Type:FD1250                        Effective printing width:1160mm

Base material Max. width:1250mm    Paper weight:70gm2-140gm2

Printing speed :10m/min-80m/min    Wind and unwinding roll max. dia.:Φ1300mm

Printing length:260-1370mm         Printing precision:±0.3mm

Oven heating power:6.4kw           Total power:15.2kw

Machine weight:3500kg              Out dimension:4400×2100×2200(mm)
